設備簡介：

該機采用底充式灌裝，灌裝過程中從底部進行充填，落差小，無揚塵，適用于包裝精度要求高的，或密度不均勻的，流動性好的或者流動性差的粉末、小顆粒物料。

1.全不銹鋼結構，組合式或開啟式透明料箱，無需工具即可方便拆洗

2.氣動夾袋裝置和托架裝在重量傳感器上，根據預先設定的重量進行快速和慢速充填

3.高反應速度的稱重系統，保證高精度得以實現

4.PLC控制、觸摸屏人機界面顯示，操作簡便

5.各種產品調整參數配方可儲存，備后使用，儲存10個配方

設備參數：

設備型號：MC-DLLB-100L

包裝重量(千克)：5～25

包裝精度：±0.1～0.5%

包裝速度(包/分鐘)：1～4

電源：3P AC 208～415V 50/60Hz

整機功率(千瓦)：2.87

整機重量(千克)：450

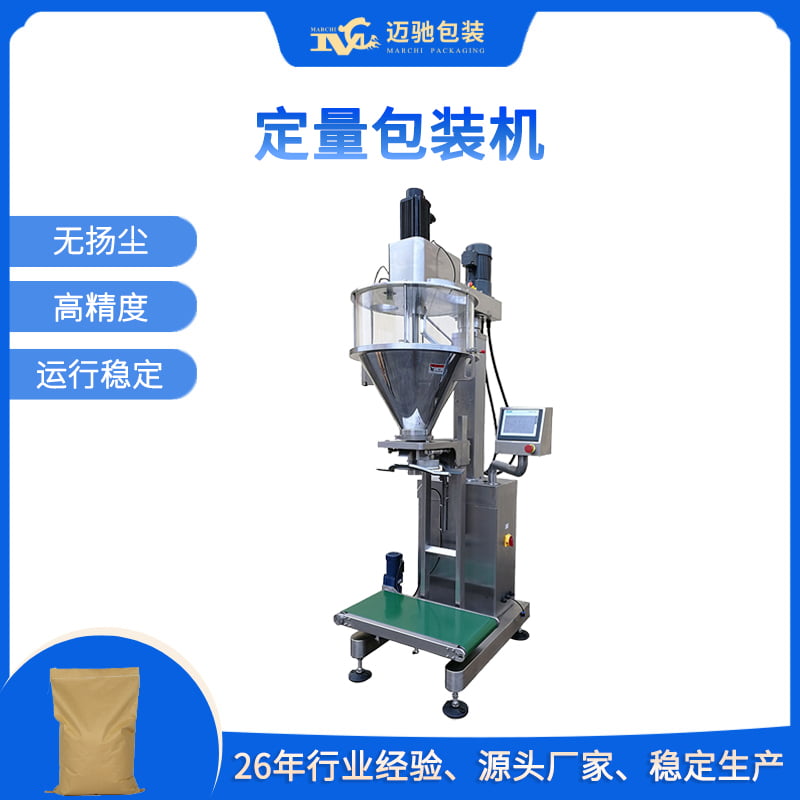

Equipment Introduction:

This machine adopts bottom-filling technology, filling from the bottom of the bag during the packaging process. It features minimal drop height and no dust generation, making it suitable for packaging powders and small granules with high precision requirements, uneven density, or varying flow properties (whether good or poor).

Key Features:

1.Fully stainless steel structure with modular or open-type transparent hopper, allowing easy disassembly and cleaning without tools.

2.Pneumatic bag-clamping device and support frame mounted on high-precision load cells, enabling fast and slow filling based on preset weights to enhance packaging accuracy.

3.High-response weighing system ensures precise weighing and control.

4.PLC control system with touchscreen HMI for user-friendly and straightforward operation.

5.Supports storage of multiple product parameter recipes, with capacity for 10 recipes, facilitating quick switching and recall for different materials.

Equipment Parameters:

Model: MC-DLLB-100L

Packaging Weight: 5–25 kg

Packaging Accuracy: ±0.1%–0.5%

Packaging Speed: 1–4 bags/minute

Power Supply: 3-phase AC 208–415V, 50/60Hz

Total Power: 2.87 kW

Machine Weight: 450 kg
